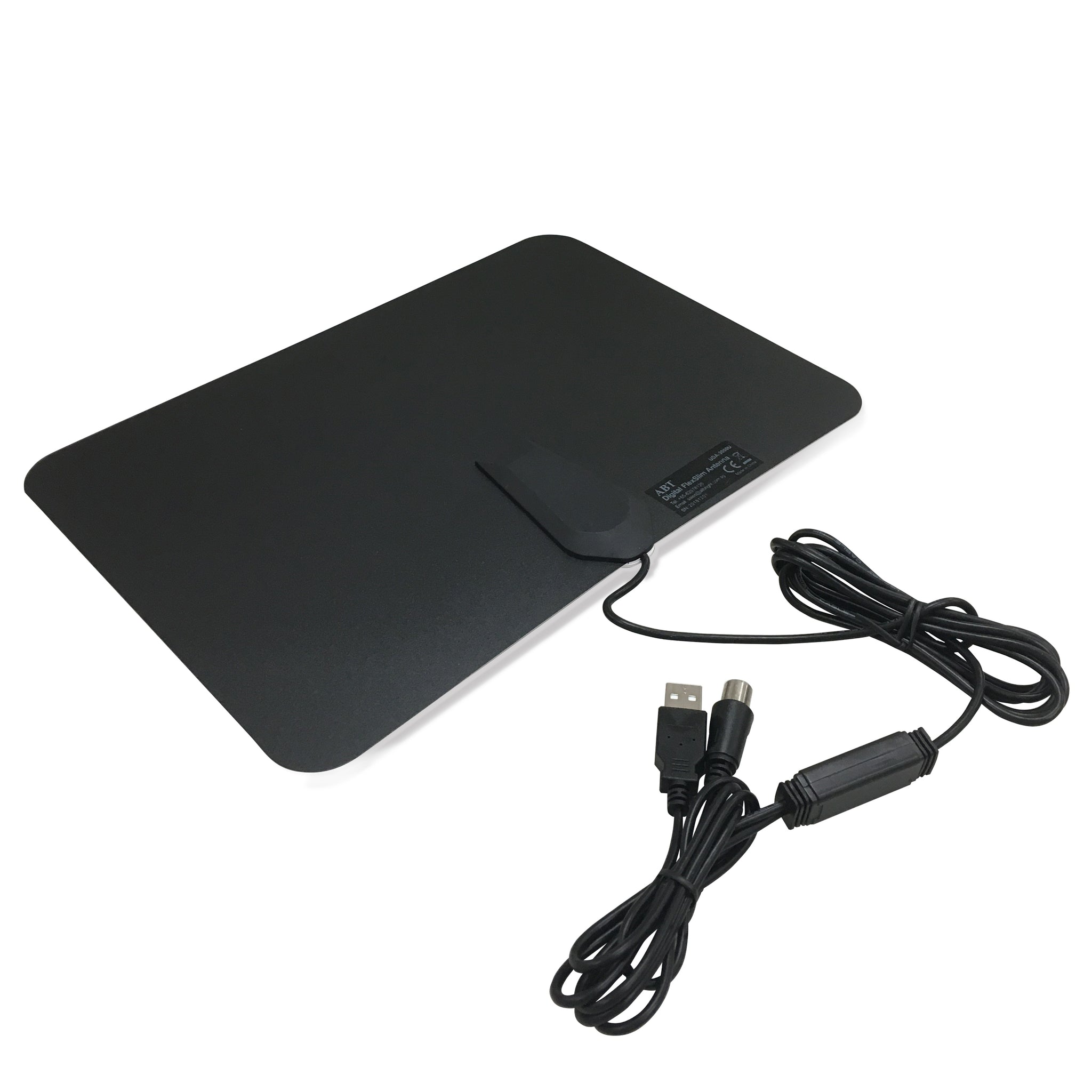

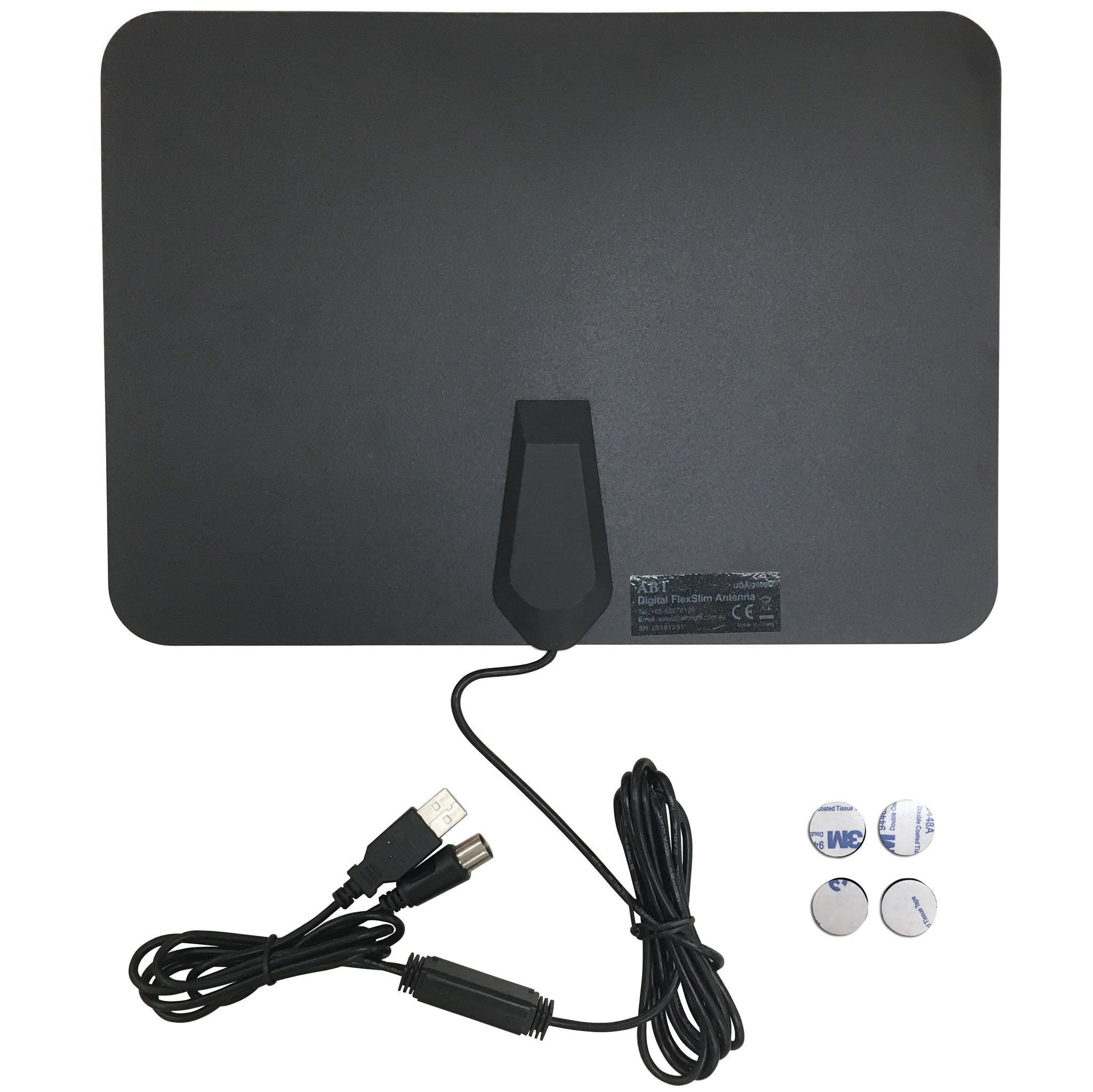

ABT, Digital FlexSlim Antenna - Ultra Slim UDA-3000U

  • $39.90
  • Save $10
Tax included.


No Warranty



For Residential Use Only

  • New pattern. Enjoy Signal Purity

With dedicated circuit layout on the revolutionary golden-triangle pattern, UDA-3000U provides strong signal reception. On top of that, the dual band UHF/VHF reception can pick up channels that UHF-only antennas can't pick up.

  • Flexible & Slim!

UDA-3000U Flexslim antenna is covered by new developed plolyster, which is very flexible & slim to be placed anywhere!

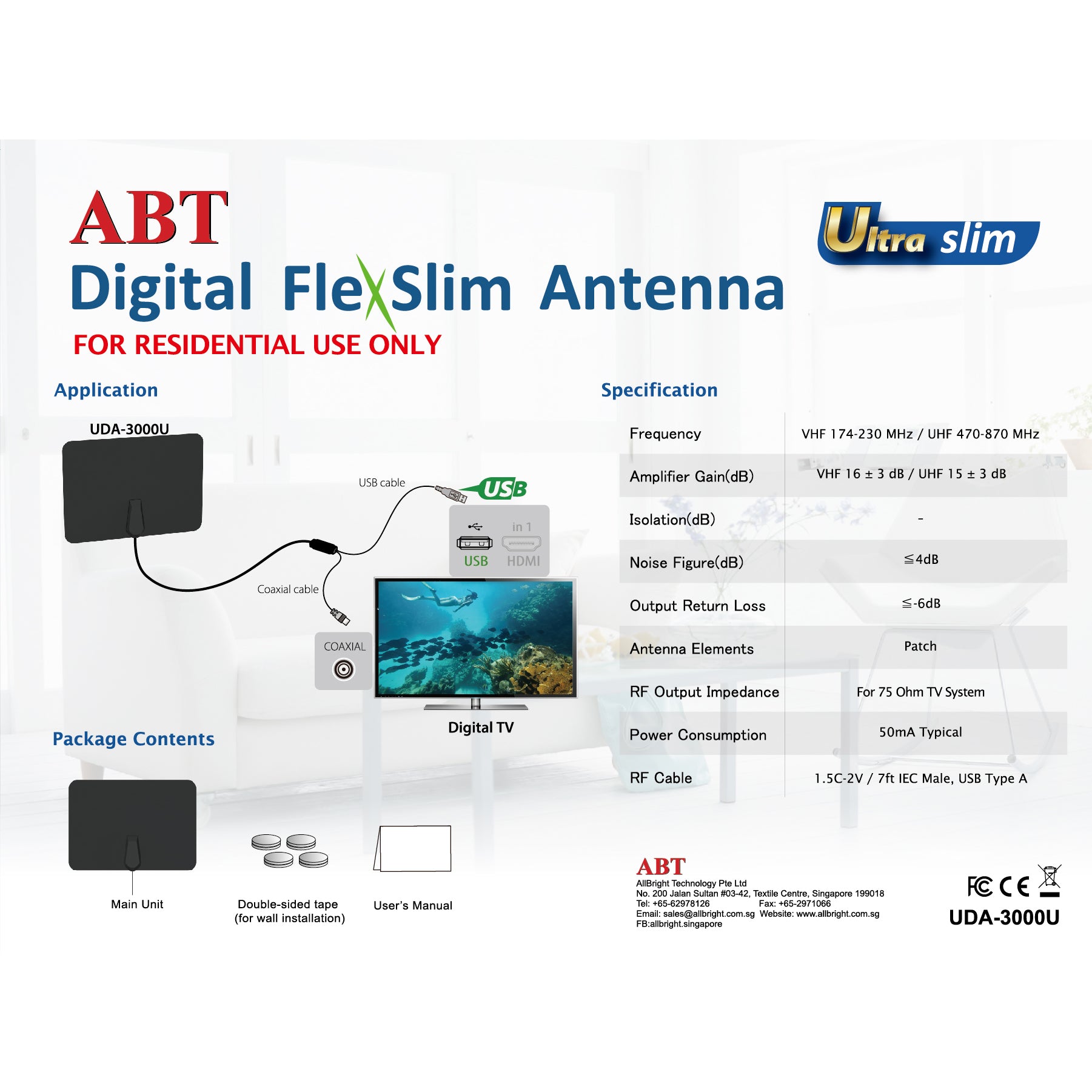

Specification

Frequency: VHF 174-230 MHz / UHF 470-870 MHz
Amplifier Gain (dB): VHF 16+/-3 dB / UHF 15+/-3 dB
Isolation(dB): nil
Noise Figure(dB): < 4dB
Output Return Loss: < -6dB
Antenna Elements: Patch
RF Output Impedance: For 75 ohm TV System
Power Consumption: 50mA Typical

RF Cable: 1.5C-2V / 7ft IEC Male, USB Type A



For example:

This Antenna is optimized to receive digital free-to-air of the Mediacorp channels. (Channel 5 HD, Channel 8 HD, Suria HD, Vasantham HD, Channel News Asia and Channel U)

To emphasize, this Antenna is designed for on-wall, indoor or window use.

To view our FTA digital TV reception, an active UHF with 470-870MHz range is required for indoor.

The available digital free to air channels are:

CH29 - 538MHz: Channel 5 & Suria

CH31 - 554MHz: Channel 8 & Vasantham

CH33 - 570MHz: CNA & Channel U

Okto was not listed as it has ceased transmission since 1st May 2019 and moved to Channel 5.
