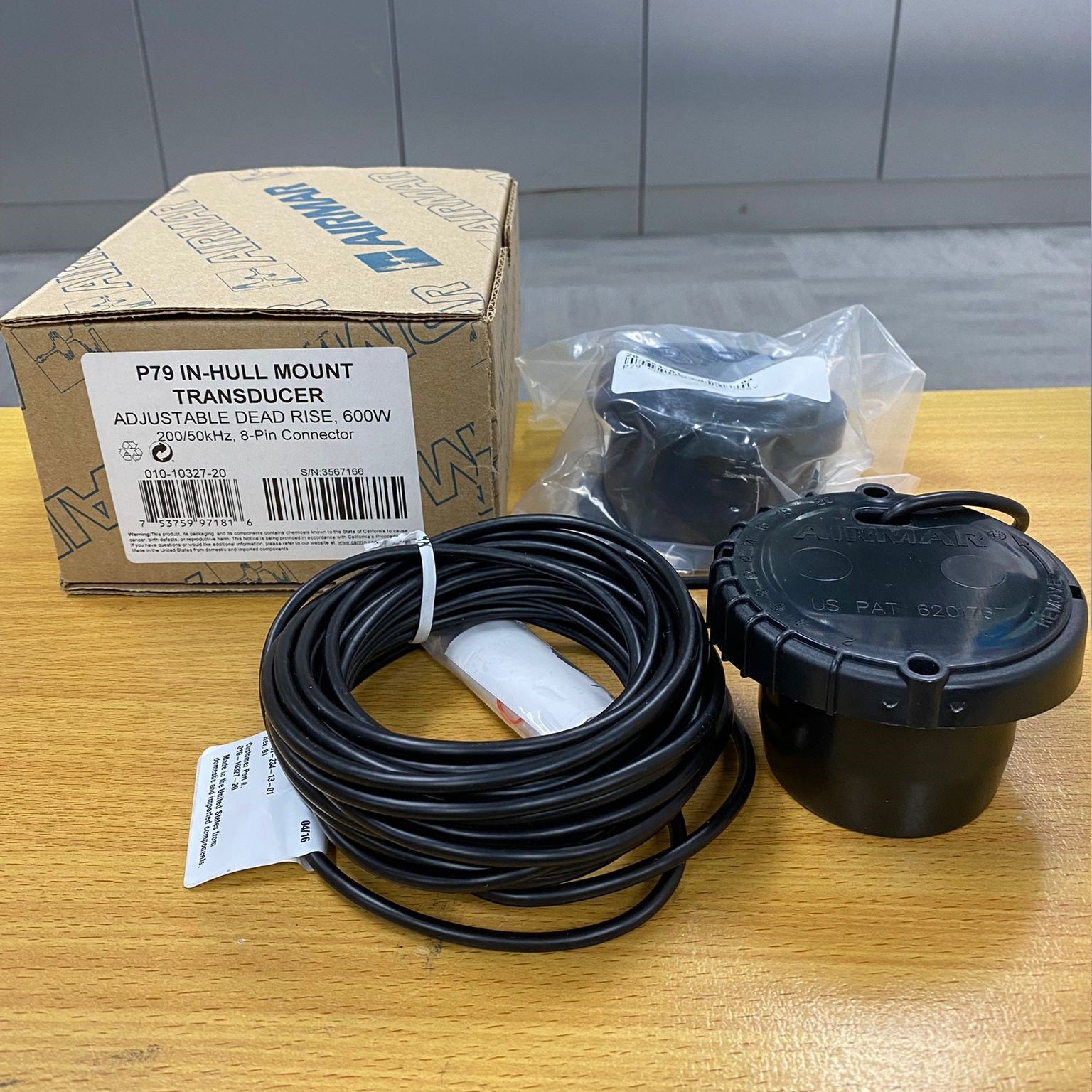

This entry level in-hull transducer with an adjustable deadrise angle makes installation a snap.
The 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 22 degree deadrise.
Transducer kit comes with installation instructions¹. Follow the instructions carefully to avoid damaging your boat.
¹Fiberglass should be no more than 5/8" thick. Not recommended for cored hulls.
When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
General |
|
| Frequency | 50/200 kHz |
|---|---|
| Power | 600 W |
| Beamwidth | 45/12 |
| Maximum depth | 800-1,200 ft. |
| Depth/Speed/Temperature | Depth |
| Number of pins | 8-pin |
| Cable length | 25 ft. |
| Supported deadrise/Transom angles |
0°-22° degree deadrise |
